FLIP_FLOP_SPEEDS_MAGNETIC_DETENI_SIEPPING_RELAY

Published:2009/7/14 21:10:00 Author:May | From:SeekIC

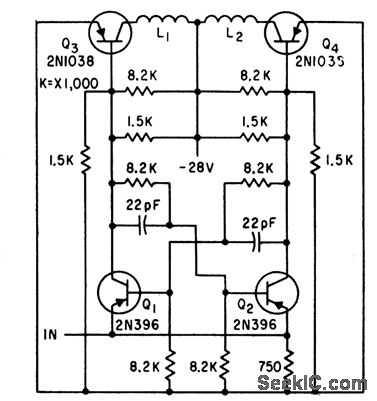

Input signal goes to emitter of saturating flip-flop Q1-Q2, whose condition is sensed by driving transistors Q3-Q4.Stepping coils L1 and L2 are energized according to condition of flip-flop.-F. W. Kear, Coils Operate Stepping Relay at Higher Speed, Electronics, 35:6, p 60-63.
