FM_DEMODULATOR_

Published:2009/7/2 23:28:00 Author:May | From:SeekIC

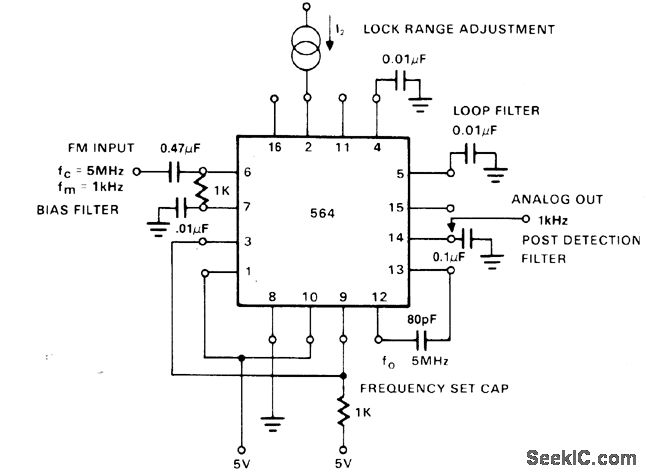

Uses Signetics NE564 PLL having postdetection processor, operating from 5-V supply. Conversion gain is low so frequency deviation in input signal should be at Ieast 1%.- Signetics Analog Data Manual, Signetics, Sunnyvale, CA, 1977, p 828-830.
