Published:2009/7/9 3:29:00 Author:May | From:SeekIC

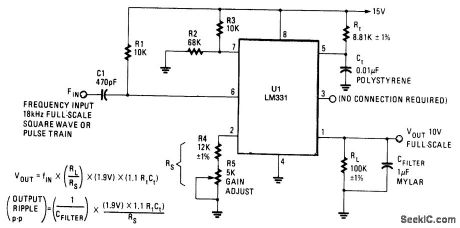

A dc output that is proportional to frequency can be derived with this circuit. It is useful for analog frequency meter or tachometer applications.
