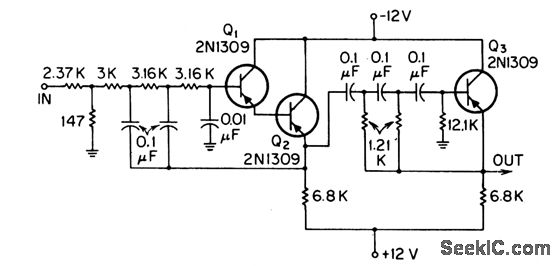

800_CPS_ACTIVE_BANDPASS

Published:2009/7/14 4:06:00 Author:May | From:SeekIC

Provides bandwidth of 13 cps. Maximum gain is 24 db, and divider at input reduces this to 0 db. Selectivity at 3-db points is 72 db/octave.－T. Mollinga, Active Bandpass Fillers, EEE,14:8, p 115-119.
