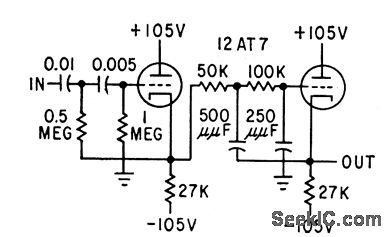

CASCADED_HIGH_AND_LOW_PASS_A_F

Published:2009/7/14 4:13:00 Author:May | From:SeekIC

Slope can be any desired multiple of 12 db per octave, with insertion loss less than 2 db.Corner frequencies are 200 radians per sec (32 cps) and 40,000 radians per sec (6,370 cps).-W. D. Fryer, How to Design Low Cost Audio Fillers, Electronics, 32:15, p 68-70.
