GENERAL_FILTER

Published:2009/7/14 4:14:00 Author:May | From:SeekIC

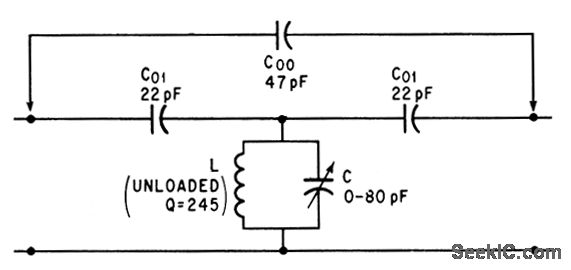

Bridging conventional bandpass filter with single capacitor C00 converts to general fiber having both sharp pass and reject behavior at adjacent frequencies. For values shown, bandpass occurs at 20 Mc and peak rejection frequency is 19.15 Mc.-R. Kurzrok, Single Component Changes Bandpass into General Filter, Electronics, 39:8, p 95-96.
