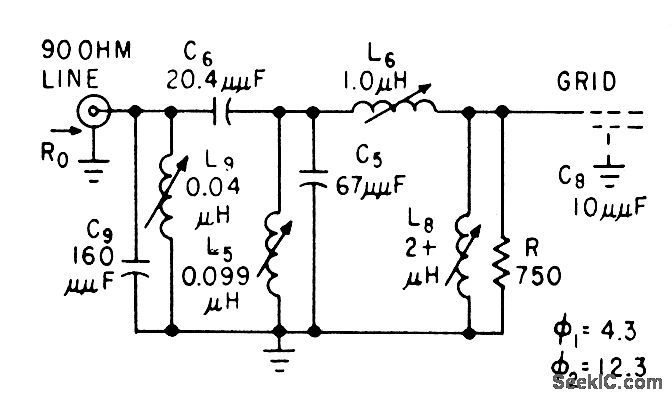

TRIPLE_TUNED_90_OHM_INPUT

Published:2009/7/14 4:10:00 Author:May | From:SeekIC

Article gives design procedure. Example shown passes signals between 55 and 65.5 Mc.-R. B.Hirsch, How to Design Bandpass Triples, Electronics, 32:34, p 41-44.
