Flashing light indication light switch circuit

Published:2012/11/8 20:55:00 Author:Ecco | Keyword: Flashing light , indication , light switch | From:SeekIC

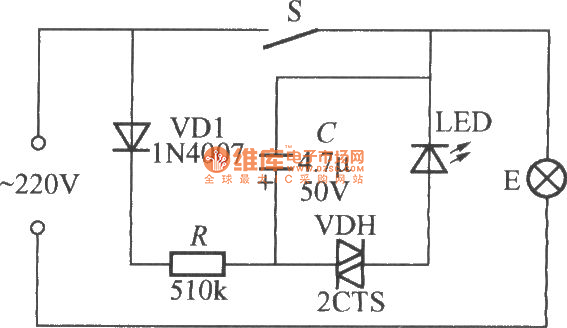

When S is closed, the light E is lit normally, flashing light indication circuit does not work because of losing power. When S is open, 220V AC is rectified by bulb E and diode VD1, and buck limited by R to charge for the capacitor C. The circuit uses the charging and discharging principle of capacitor C and two - way trigger diode VDH negative resistance to form a relaxation oscillator, so light-emitting tube LED flashes at night, and it is very eye-catching to make it easy to find the switch position.
