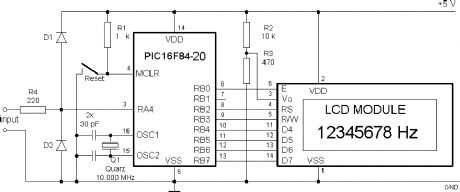

Frequency counter 400Hz to 50MHz with PIC 16F84

Published:2012/9/11 20:49:00 Author:Ecco | Keyword: Frequency counter , 400Hz to 50MHz , PIC | From:SeekIC

It consists only from Microchip PIC 16F84 cpu and LCD text module. Author states that this counter is capable metering frequencies from 400Hz to 50MHz. I used faster, 20MHz version of 16F84A-20I/P, and it managed to count 80MHz oscillator output.
