Full Featured Toy Throttle

Published:2013/6/25 22:05:00 Author:muriel | Keyword: Full Featured Toy Throttle | From:SeekIC

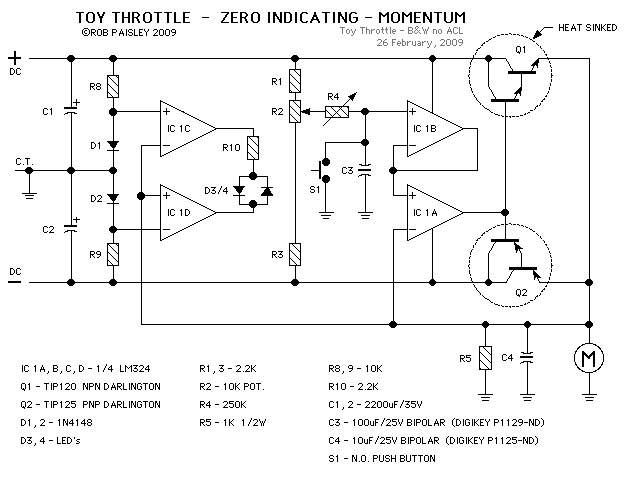

The next schematic shows a full featured Toy Throttle Upgrade. This version has Zero Indication, and Momentum. The transformer and bridge rectifier have been omitted to make the drawing smaller.All of the features in this circuit can be found in conventional throttle designs. The only difference here is the PLUS or MINUS output voltage capability.
