Fuse fusing indicator circuit diagram

Published:2011/5/3 0:56:00 Author:Ecco | Keyword: Fuse fusing indicator | From:SeekIC

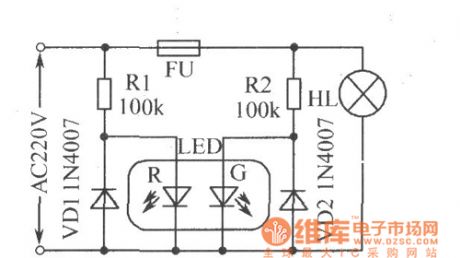

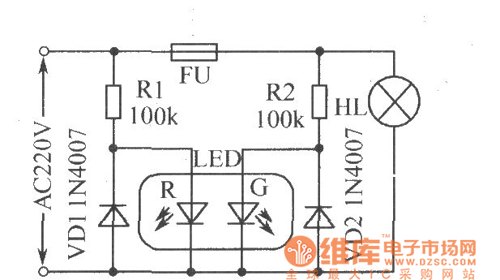

The chart shows the fuse fusing indicator circuit diagram. LED-R is used for the AC power indicator, LED-G is a fuse FU status indicator. When FU is normal, the two LEDs are lit and emit orange light; when FU blows, LED-G is off, only the LED-R emits red light. Limiting resistor R10, R2 can be replaced by the 220nF/450V capacitor, VD1, VD2 can be saved.
