Grid overvoltage protection circuit

Published:2011/8/22 21:14:00 Author:muriel | Keyword: Grid , overvoltage protection circuit | From:SeekIC

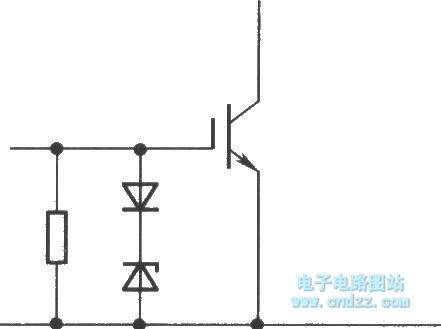

Reasons for grid's overvoltage: 1. Static electricity on the grid capacitance cancause overvoltage.2. Capacitance mueller effect causes grid overvoltage.To prevent the IGBT grid-emitter from overvoltge, a resistance with dozen kilohm should be connected between the grid and emitter of IGBT in parallel. As the figure is shown, the resistance should beclosed to the grid and emitter.
