INVERTING_SAIYIPLE_AND_HOLD

Published:2009/7/9 23:29:00 Author:May | From:SeekIC

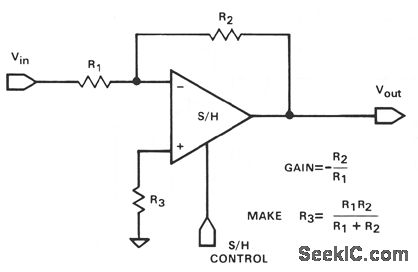

This illustrates another application in which the hookup versatility of a sample-and-hold often elimi-nates the need for a separate op amp and a sample-and-hold module. This hookup will have a some-what higher input-to-output feedthrough during hold than the noninverting connection, since the output impedance is an open-loop value during hold. The feedthrough will
