Interfacing DRAM M5M44800 Memory with AVR AT90S8515

Published:2012/9/11 20:30:00 Author:Ecco | Keyword: Interfacing DRAM, Memory , AVR | From:SeekIC

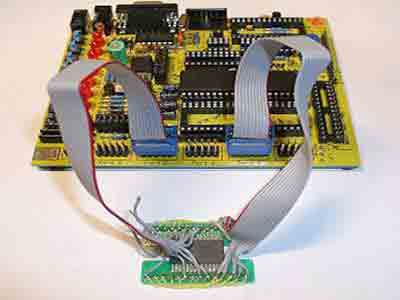

Is it possible to use DRAM with microcontroller AVR? Yes, it is possible. Jesperh has proved it. He hooked up a DRAM to a small processor (in this case an Microcontroller Atmel 8515), and handle the RAS/CAS sequencing and refresh in software. The type of DRAM is Hitatchi M5M44800, a 512k*8 DRAM!. Bigger than the original memory of microcontroller AT90S8515 that is 512 byte RAM. The project use C to programm it. The chip required small power consumption, only takes about 2-3 mA when just refreshing and with a low access rate.
