JFET_WITH_AC_COUPLING

Published:2009/7/10 4:11:00 Author:May | From:SeekIC

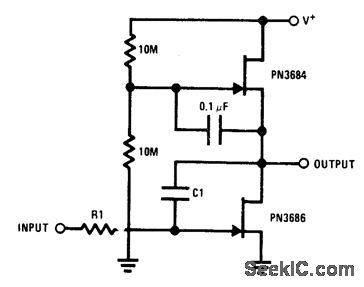

Connection shown gives very high voltage gain. Use of C1 as Miller integrator or capacitance multiplier allows simple circuit to handle very long time constant.- FET Databook, National Semiconductor, Santa Clara, CA, 1977, p 6-26-6-36.
