LATCHING_GATES

Published:2009/6/29 4:01:00 Author:May | From:SeekIC

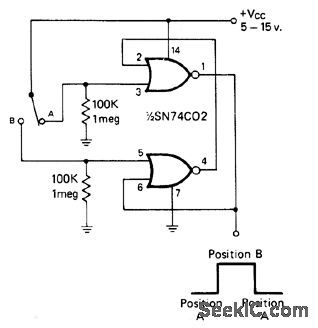

SN74C02 quad two-input NOR gate forms latching circuit in which first noise pulse produced by switch latches circuit, making it immune to contact bounce.—I. Math, Bounceless Switch, CQ, July 1976, p 50.
