LED electronic clock circuit diagram with six functions

Published:2011/4/29 3:43:00 Author:Ecco | Keyword: LED , electronic clock , six functions | From:SeekIC

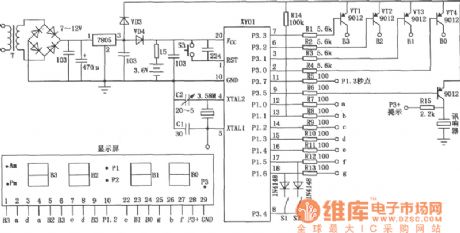

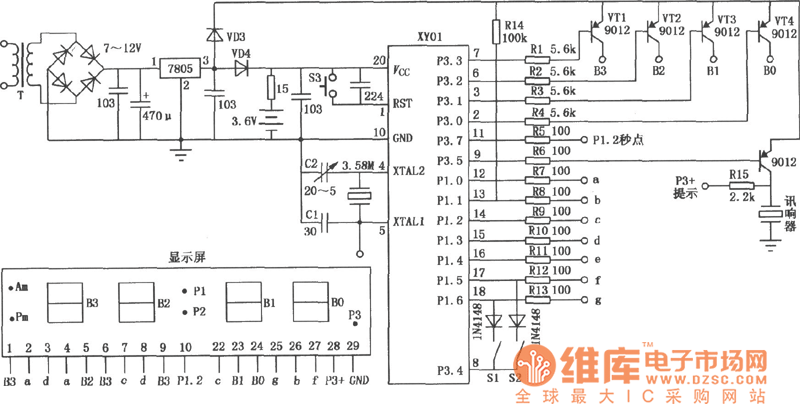

The LED electronic clock circuit with six functions shown as the chart is composed of XY01 modules. It has six functions of showing month, day, hours, minutes, seconds and alarm.
