LM322_ASTABLE

Published:2009/7/15 1:55:00 Author:Jessie | From:SeekIC

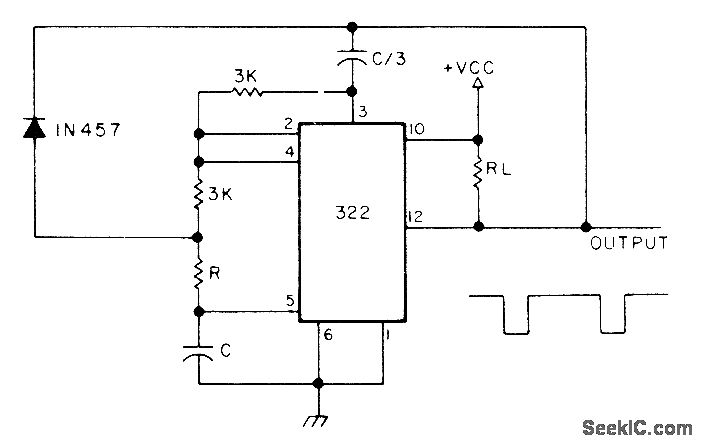

National LM322 timer generates narrow negative pulse whose width is approximately 2RC seconds. VCC is 4.5-20 V. Will drive loads up to 5mA. -H. M. Berlin, IC Timer Review, 73Magazine, Jan. 1978, p 40-45.
