LM3915 Circuit

Published:2013/9/26 20:24:00 Author:lynne | Keyword: LM3915 Circuit | From:SeekIC

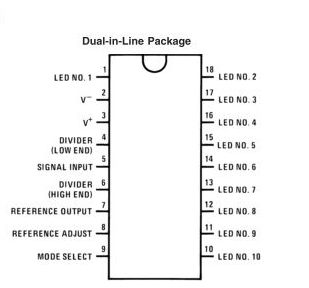

The LM3915 datasheet specifies that the IC is a monolithic integrated circuit that senses analog voltage levels and drives ten LEDs, LCDs or vacuum fluorescent displays, providing a logarithmic 3 dB/step analog display. One pin changes the display from a bar graph to a moving dot display. LED current drive is regulated and programmable, eliminating the need for current limiting resistors. The whole display system can operate from a single supply as low as 3V or as high as 25V. LM3915 Features 3 dB/step, 30 dB range Drives LEDs, LCDs, or vacuum fluorescents Bar or dot display mode externally selectable by user Expandable to displays of 90 dB Internal voltage reference from 1.2V to 12V Operates with single supply of 3V to 25V Inputs operate down to ground Output current programmable from 1 mA to 30 mA Input withstands ±35V without damage or false outputs Outputs are current regulated, open collectors Directly drives TTL or CMOS The internal 10-step divider is floating and can be referenced to a wide range of voltages
