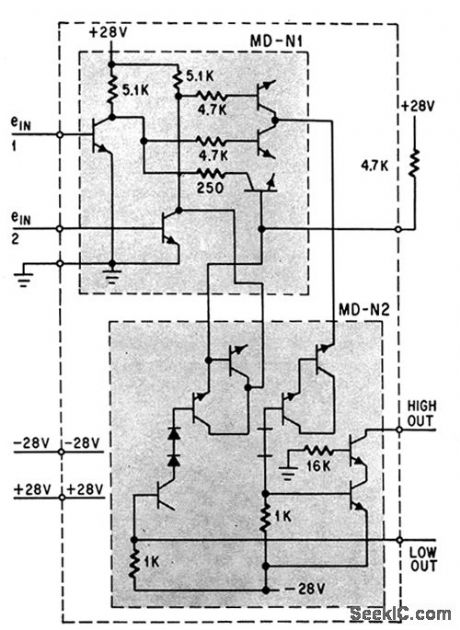

LOGIC_AND_BUFFER_AMPLIFIER

Published:2009/7/16 3:45:00 Author:Jessie | From:SeekIC

Designed to be driven by dual Schmitt trigger.-D. D. Robinson, Linear Microcircuits Scarce? Now You Con Breadboard Your Own, Electronics, 37:27, p 58-64.
