LOW_COST_BASIC_SCHMITT

Published:2009/7/23 21:30:00 Author:Jessie | From:SeekIC

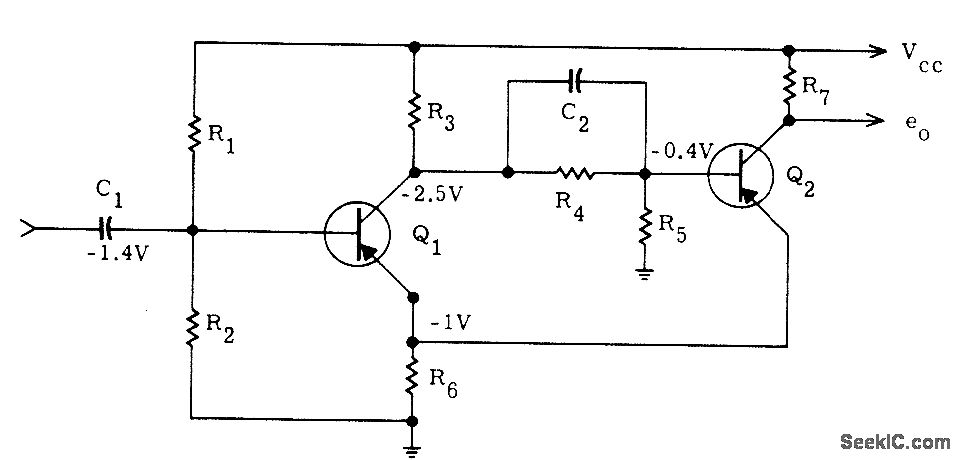

Developed for use with inexpensive 2N711 germanium pnp mesa switching transistors. Can serve as source of 10-Mc square waves, as pulse restorer, or as general-purpose square wave generator.-P. A. Mclnnis, Low-Cost Computer Circuits, Motorola Application Note AN-130, Nov. 1965.
