Logic_to_inductive_load_interface

Published:2009/7/24 11:31:00 Author:Jessie | From:SeekIC

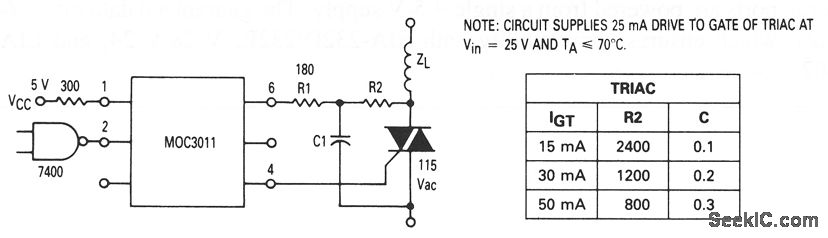

This circuit shows interface between conventional 7400 TTL logic and a triac, using an MOC3011 optoisolator with triac-driver output (chapter 9). The values of C and R2 depend on the triac current. Maxim, 1992, Appications and Product Highlights, p. 1-3-15.
