M24C08-MN6T-E(2)PROMAO~A7 storage integrated circuit diagram

Published:2011/5/16 2:53:00 Author:Nicole | Keyword: storage | From:SeekIC

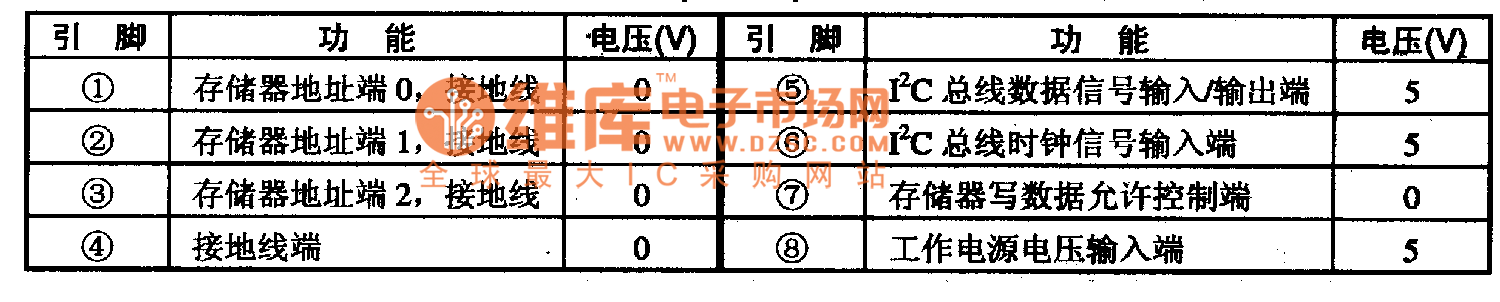

M24C08-MN6T is a E(2)PROMAO~A7 storage integrated circuit which is produced by Mitsubishi Corp, it is widely used in all kinds of models and size large screen color television. 1. functions and features M24C08-MN6T integrated circuit contains I square meter C bus circuit, memory address and storage singal control circuit and other assistant functions circuits. 2. pin function and data M24C08-MN6T integrated circuit adopts 8-foot dual in-line package, the pin function and data of this integrated circuit is shown in the table1. Note: When M24C08-MN6T is used to different models, the writing process is different, so it can not bechanged directly.
