M52470AP audio- video switch IC diagram

Published:2011/8/14 22:13:00 Author:Ecco | Keyword: audio- video switching IC | From:SeekIC

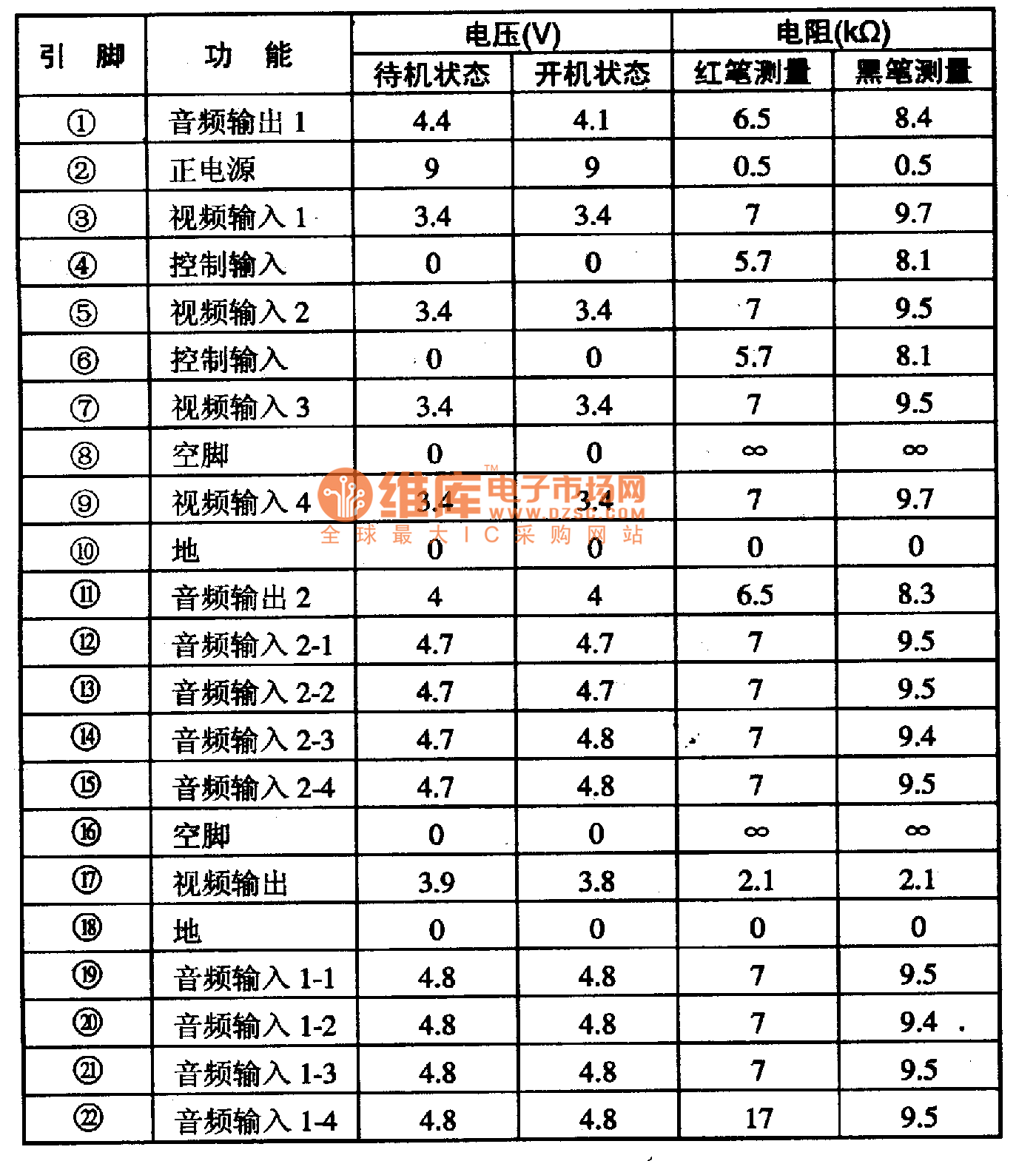

M52470AP is the audio-video switching integrated circuit produced by Japanese Mitsubishi company, and it is widely used in TV Changhong CN-l5 movement and other brands of big screen color TV. M52470 IC contains 4-way inputs and 3-way switching electronic switch circuits. In the movements of CN-l5 color TV, the integrated circuit pin functions and data are listed in Table 1.
