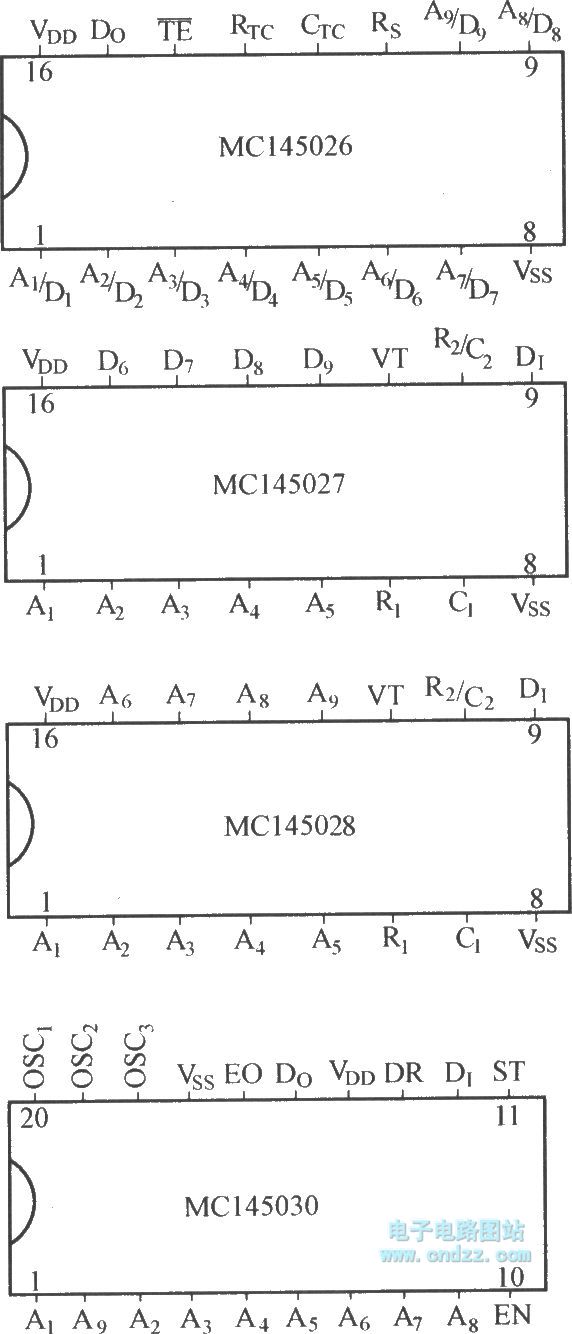

MC145026 ~ MC145030 pin function chart

Published:2011/9/27 21:47:00 Author:Rebekka | Keyword: pin function chart | From:SeekIC

The digital encoding and decoding circuits has different kinds, andMC140000 series is one of them. The series ofcircuit includes MC145026, MC145027, MC145028, MC145029, and MC145030, etc. MC145026 is encoder, MC145027, MC145028 and MC145029 are decoders. MC145030 encoder can be used for the decoder, coding / decoding circuit.
