MC145151-2 PLL frequency synthesizer circuit diagram

Published:2011/7/21 2:12:00 Author:Ecco | Keyword: PLL frequency synthesizer | From:SeekIC

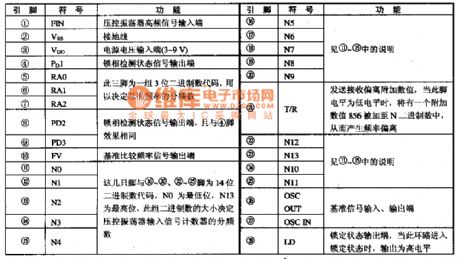

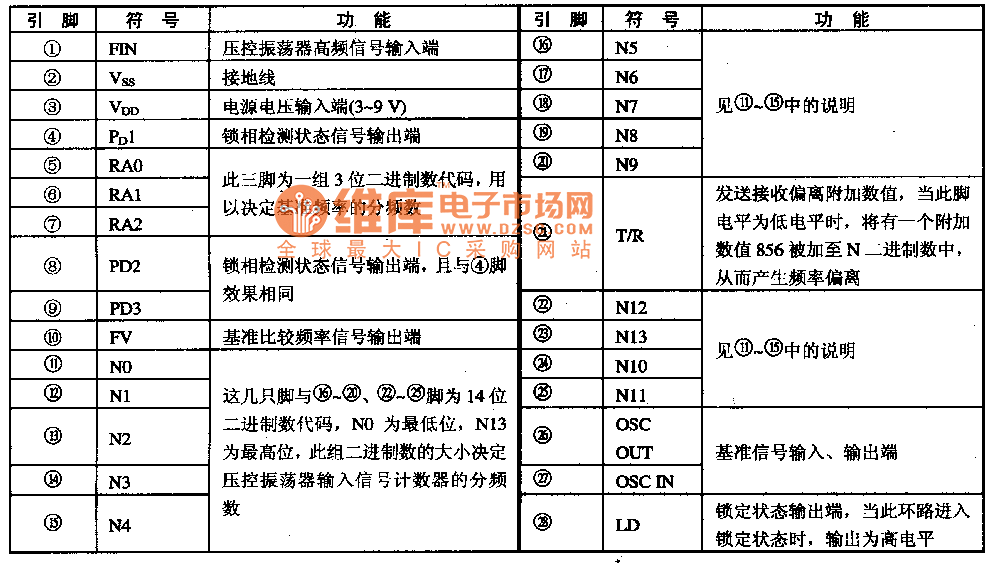

MC145151-2 is the PLL frequency synthesizer IC with dual preset fixed-frequency device. It is suitable for high frequency communications equipment. It has three packages, in order to distinguish by the letter suffix, of which MC145151P-2 is packaged with 28 pin dual in-line package, and MC145151DW-2 is packaged with the 28 pin dual in-line package, and MC145151DW-2 is packaged with the 28-pin package, and MC145151FN-2 is packaged with the SMD ring package. The pin functions are listed in Table.
