METRONOME_I

Published:2009/7/1 2:26:00 Author:May | From:SeekIC

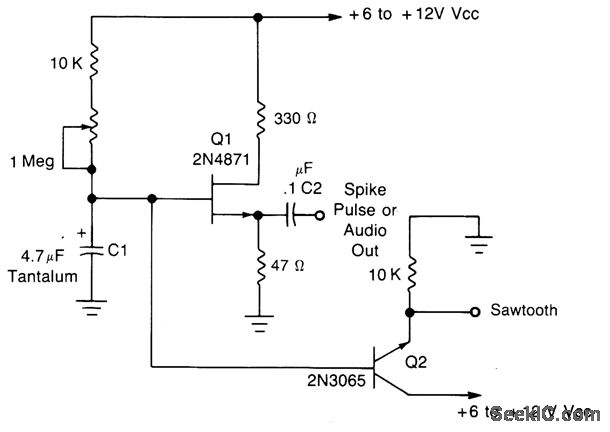

This simple oscillator uses a 2N4871 UJT to give pulses from 0.2 to about 20 Hz.A spike is available at C2, a sawtooth at the emitter of Q2 of about 2-3 V p-p, depending on VCC.
