MIDI receiving circuit diagram

Published:2011/8/5 1:15:00 Author:Ecco | Keyword: MIDI | From:SeekIC

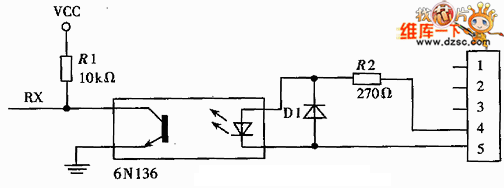

Transmission cable uses the shielded twisted pair cable, because the signal transmission uses current signal to replace voltage signal, it has strong anti-interference ability, although its rate is up to 31.5kbps, transmission distance can still reach 15m, which is further than the common the transmission distance of RS-232 interface. General MIDI receiver circuit is shown as below.
