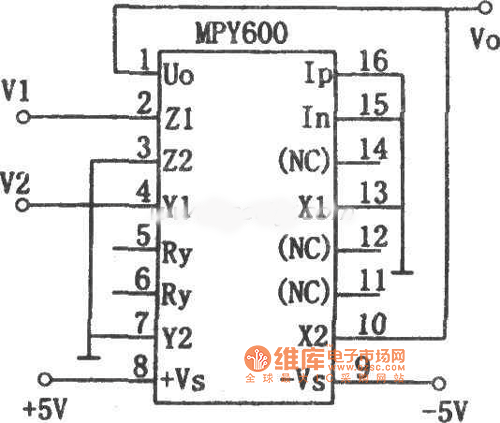

MPY600 division circuit diagram

Published:2011/8/19 1:43:00 Author:Jessie | Keyword: division | From:SeekIC

This circuitis composedof multiplier MPY600, inputs are V1 and V2, their input full range is ±2V, its output Vo is: Vo=-2V1/V2. The integrated circuit is as a division, its bandwidth is relevant with V2, the higherV2 is, thebigger bandwidth is.
