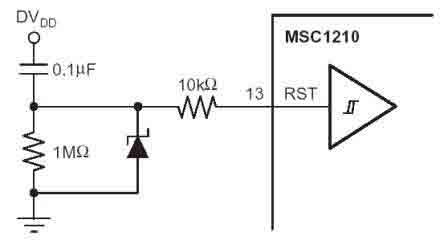

MSC1210 Reset Circuit

Published:2012/9/10 21:27:00 Author:Ecco | Keyword: Reset | From:SeekIC

According to the MSC1210 datasheet, you will perform an external reset by taking RST pin high for two tOSC periods as this stops device operation, crystal oscillation, causes all digitall pins to be pulled high from that point and then followed by taking the RST pin low that initiates the reset procedure.
