Meter Placement Diagram

Published:2013/6/21 2:39:00 Author:muriel | Keyword: Meter Placement Diagram | From:SeekIC

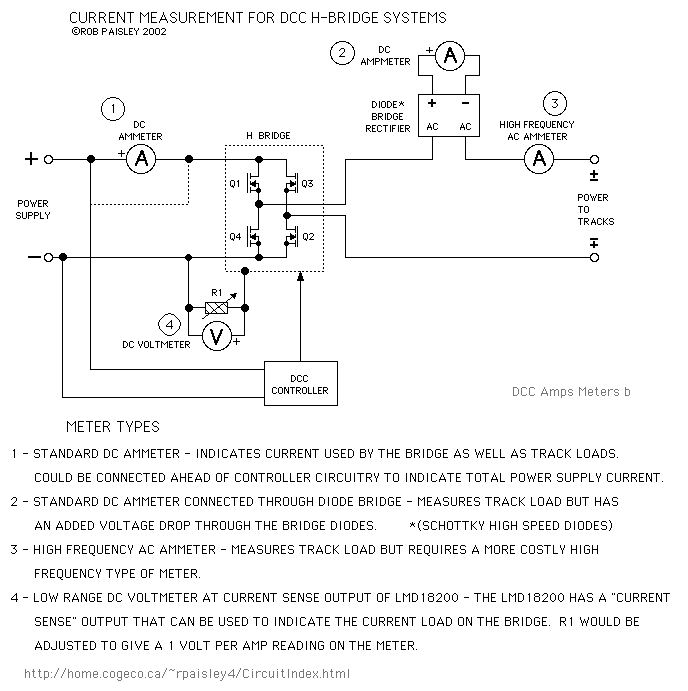

The following diagram shows a very simple schematic of an H-Bridge circuit with current indicating meters placed at various locations. Text on the diagram indicates the type of meter and any special considerations involved.
