Motor overheating language newspaper called circuit diagram

Published:2014/3/13 22:59:00 Author:lynne | Keyword: Motor overheating language newspaper called circuit diagram, | From:SeekIC

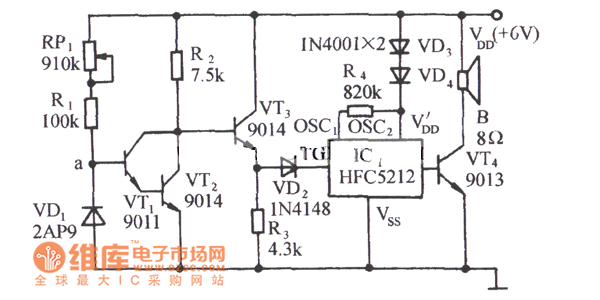

The circuit shown in FIG. It consists of a temperature sensor, electronic circuit and the switching circuit composed of the language utterance. In the hot season, or when the temperature of the motor fails to run, often the motor overheating. The circuit can issue a beep, please note that the language of caution in the motor housing temperature alert duty personnel in order to avoid burn out the motor.
