Movement direction sensor(CD4011) circuit with gate circuit

Published:2011/7/22 3:04:00 Author:chopper | Keyword: Movement, direction sensor, gate circuit | From:SeekIC

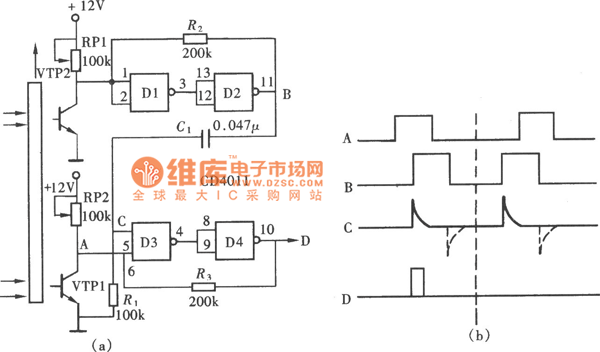

Movement direction sensor isan essential circuit component of the production counters on the auto-product line.The picture shows the movement direction sensor formed by nand-gate CD4011,but this sensor is designed to identify the positive direction of movement,not to identify the opposite direction of the movement, it is a one-way motion sensor.
