OUTPUT_STAGE_POWER_BOOSTER

Published:2009/7/9 1:58:00 Author:May | From:SeekIC

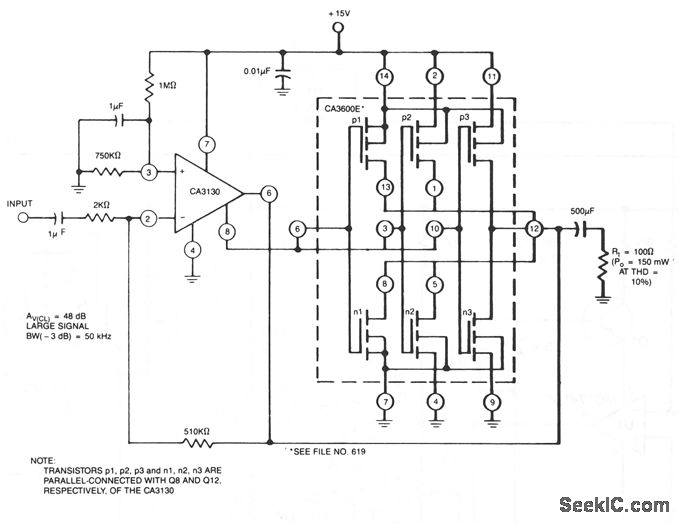

This circuit easily supplements the current-sourcing and current-sinking capability of the CA3130 BiMOS op amp. This arrangement boosts the current-handling capability of the CA3130 output stage by about 2.5 times.
