BIKE_SPEEDOMETER

Published:2009/7/10 2:18:00 Author:May | From:SeekIC

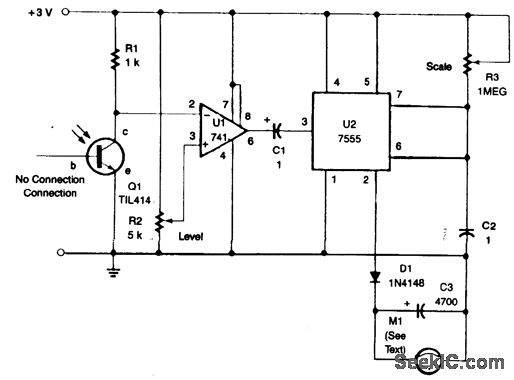

A TIL414 photo transistor senses reflection from a spoke-mounted reflector. This generates a pulse and sends it to U1 and U2, a monostable multi ibrator, which drives meter M1.
