CXD254Q Digital Servo and Signal Processing Integrated Circuit

Published:2011/8/3 6:39:00 Author:Michel | Keyword: Digital Servo, Signal, Integrated Circuit | From:SeekIC

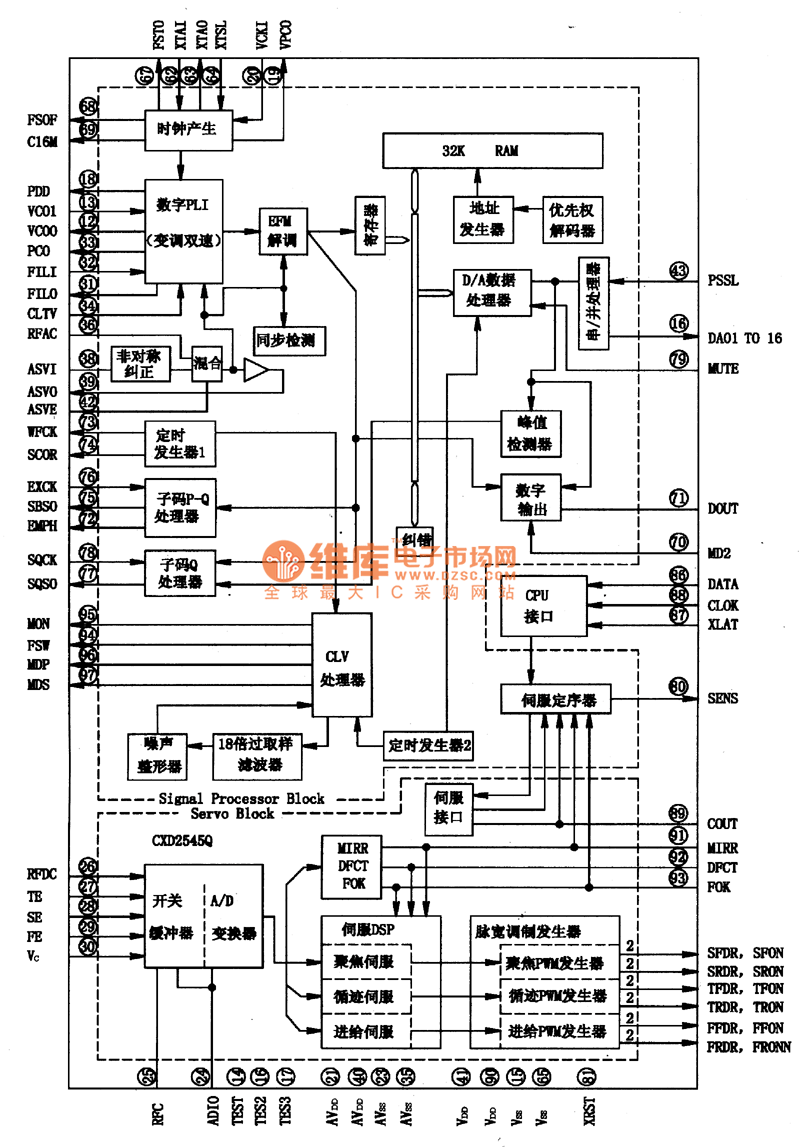

CXD254Q is digital servo and signal processing integrated circuit produced by Sony Company.It is widely used in CD and VCD players. First,Inside Circuit Block DiagramCXD254Q integrated block circuitis mainly composed of digital servo(D-Servo) and signal processor (DSP).Its inside circuit block diagram is shown as picture 1. Picture 1:Inside Circuit Block Diagram of CXD254Q Intergrated Block
