DS2762 pin array diagram

Published:2011/12/2 0:33:00 Author:May | Keyword: land patten | From:SeekIC

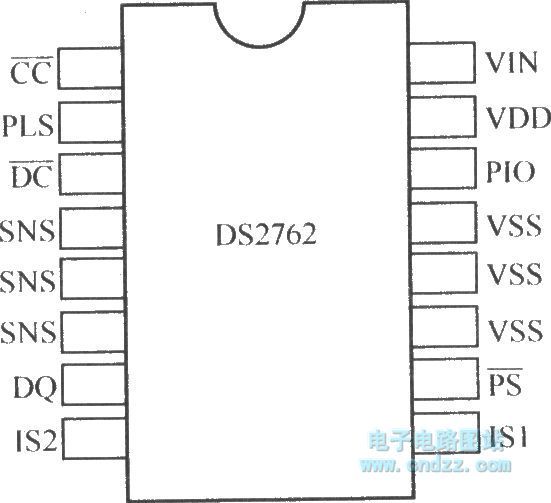

DS2762 is lithium ion battery monitor chip. It is produced by Maxin company. It can real-time monitor the parameter of voltage, current, charge and discharge condition and dump energy, etc. The chip can store this data. The chip can provide this data to SCM. And SCM can do relvant treat to the data. DS2762 chip cancollect data, store information. DS2762 chip hasthe features of functional integrity, external wiring simple and so on. Its pin array is shown in the following diagram.
