FUZZ_BOX_2

Published:2009/7/1 4:13:00 Author:May | From:SeekIC

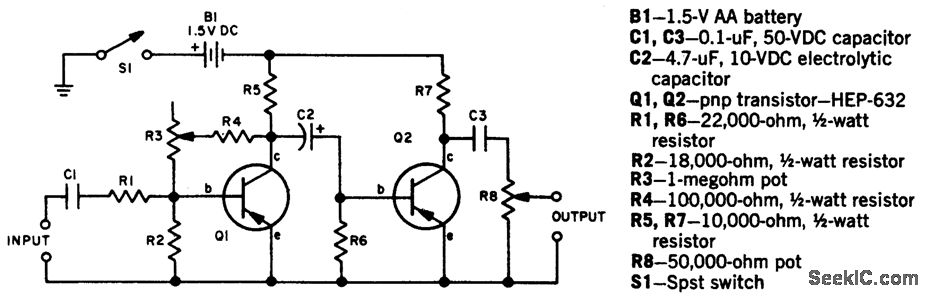

Circuit Notes Potentiometer R3 sets the degree of fuzz, and R8 sets the output level. Since the fuzz effect cannot be completely eliminated by R3, fuzz-free sound requires a bypass switch from the input to output terminals.
