Fronting Prescale Integrated Circuit of TD6134AF Dual Mode

Published:2011/7/22 22:51:00 Author:Michel | Keyword: Dual Mode, Fronting Prescale, Integrated Circuit | From:SeekIC

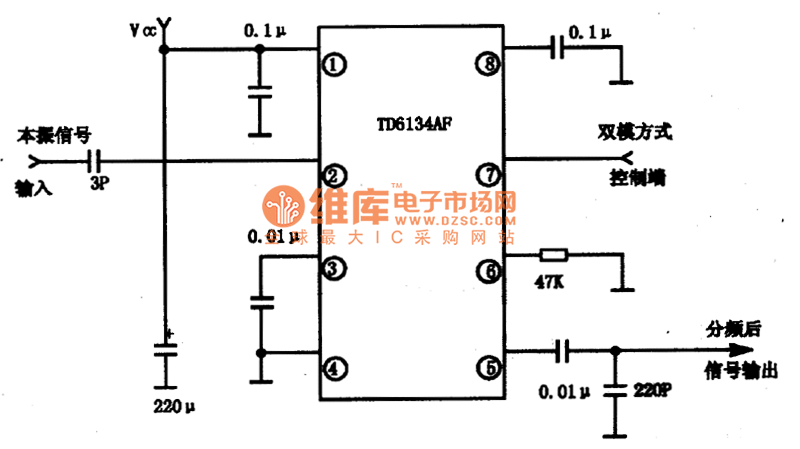

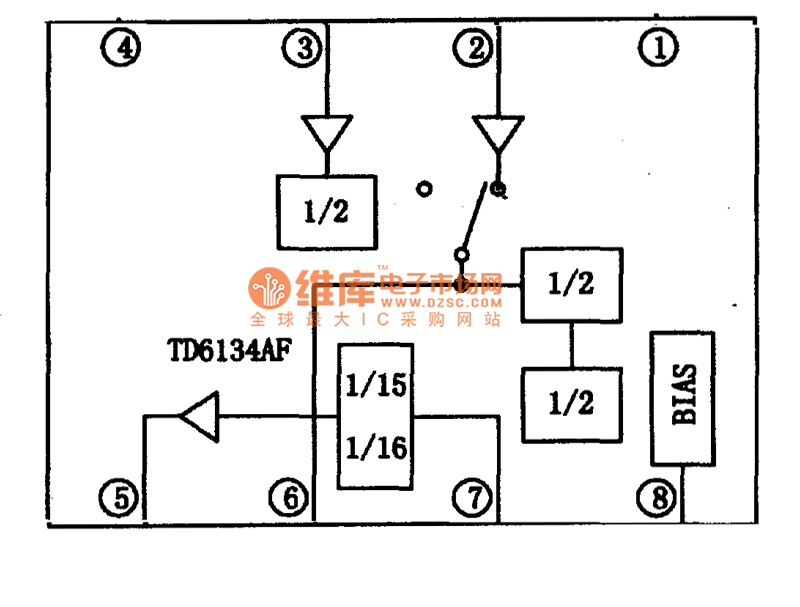

TD6134AF integrated circuit provides fronting prescaler used in low voltage power supply type digital tuned system and the working frequency maximum is 250 MHz. First,TD6134AF Inside Circuit Block Diagram and Pins Functions Inside circuit block diagram of TD6134AF intergrated circuit is shown as picture 1.This IC adopts 8 feet DIP structure and its pins functions and data of the intergrated circuit are shown as table. Inside Circuit Block Diagram of TD6134AF Intergrated Circuit Second,Typical Application Circuit of TD6134AF The typical application circuit of TD6134AF intergrated block is shown as picture 2. Third,TD6134AF Main Functions Because the FM frequency signal is 108 MHz and a 10.7 MHz intermediate frequency is added and the highest vibration FM is 118.7MHz.
