Monolithic Stereo Play Intergrted Circuit

Published:2011/7/20 2:06:00 Author:Michel | Keyword: Monolithic, Stereo, Play Intergrted Circuit | From:SeekIC

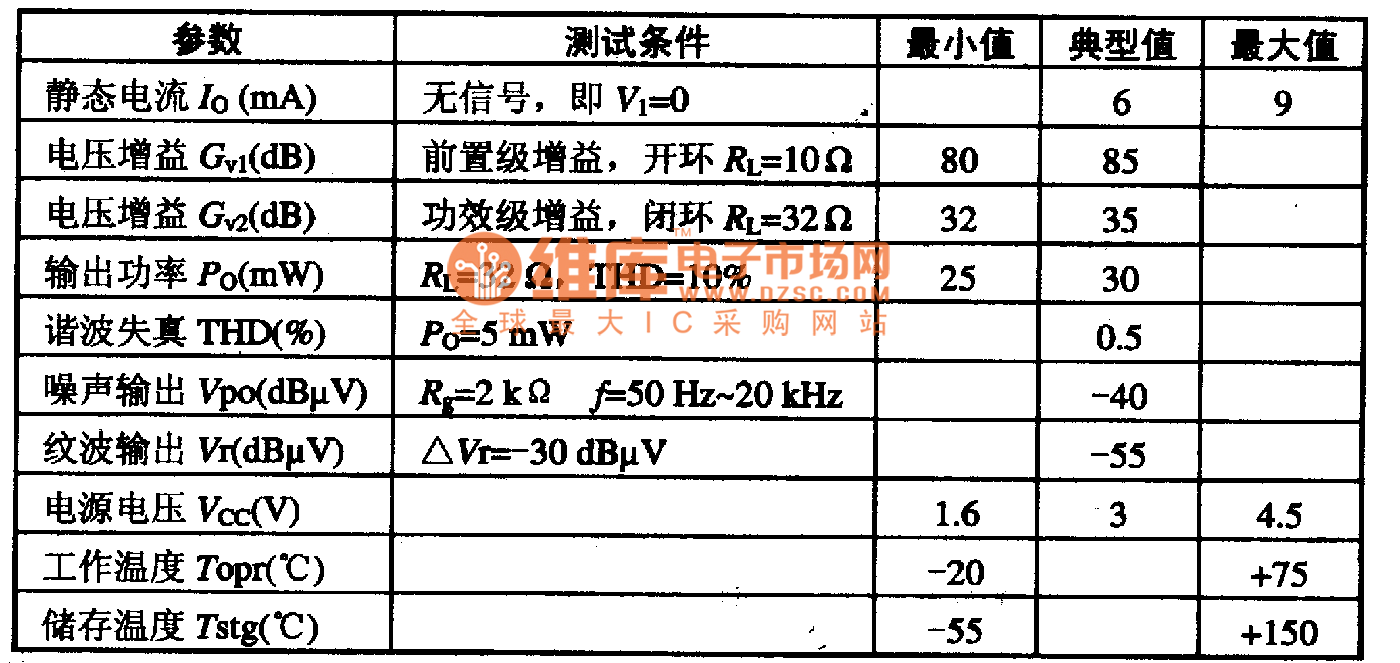

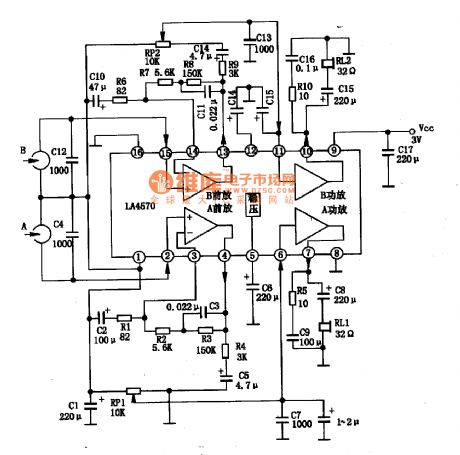

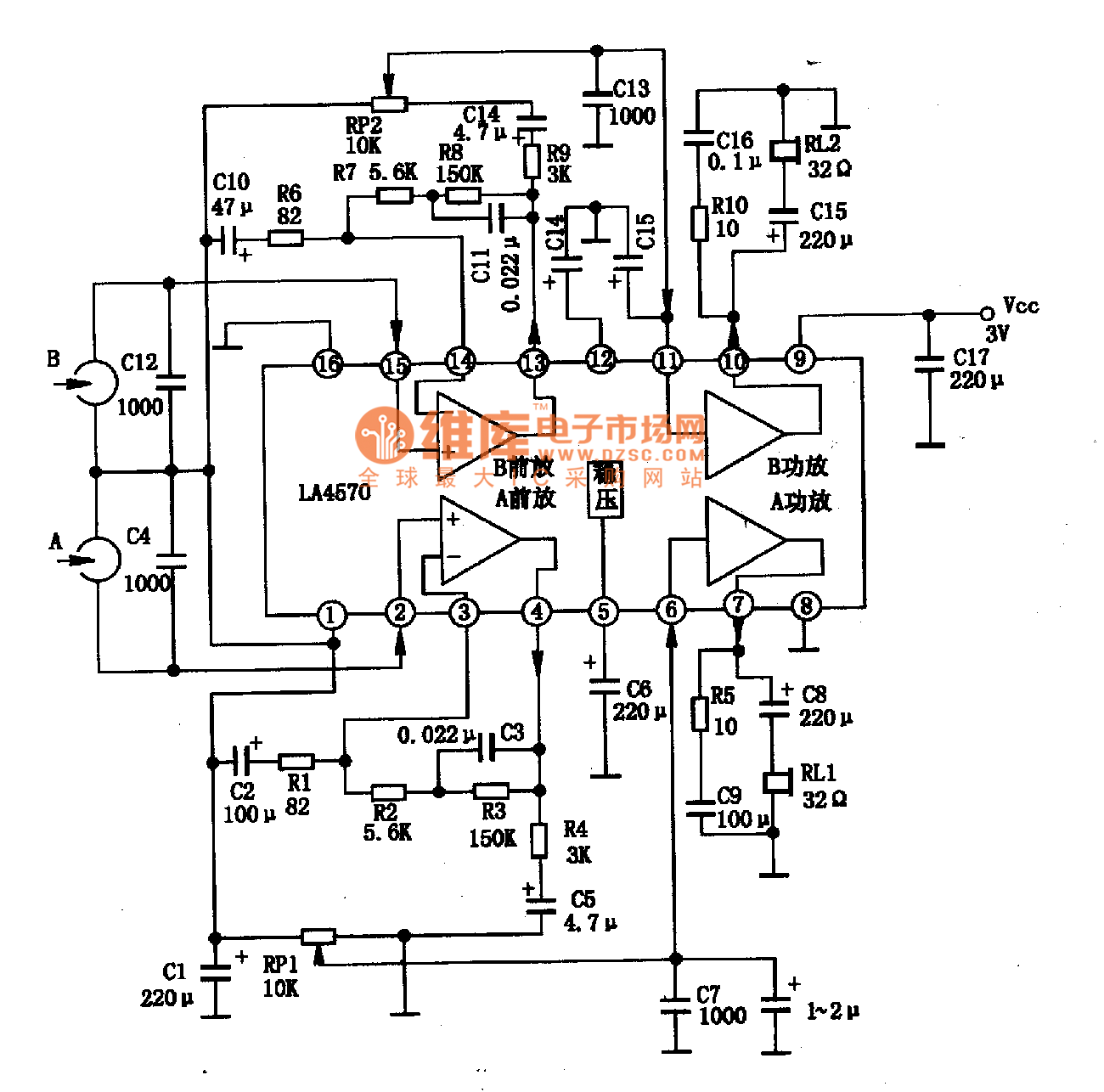

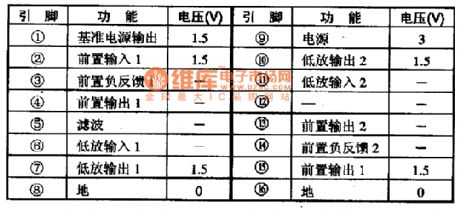

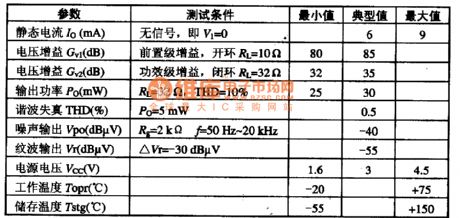

LA4570 is cassette specific integrated circuit produced by SANYO Company.LA4570 are used in domestic, domestic assembly or import the monoplayer and cassette player. First,LA4570 Inside Circuit Block Diagram and Pins FunctionsLA4570 integrated block is double preamplifying double power amplifier devices, with low voltage power supply and wide range, high gain, low consumption and less external components etc.advantages.One LA4570 and few external device can constitute monoplayer and cassette player.Its intergrated block inside circuit block diagram and typical application circuit are shown as picture 1.The IC adopts 16 feet DIP or flat package structure. The IC pins functions and data are shown as table 1. Table 1: LA4570 IC Pins Functions and DataLA4570 Typical Application Circuit LA4570 typical application circuit of intergrated block is shown as picture 1.
