Pulse delay circuit circuit diagram

Published:2011/5/12 6:23:00 Author:Rebekka | Keyword: Pulse delay circuit | From:SeekIC

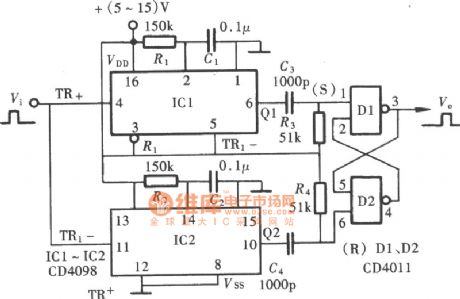

If you need to delay longer than the input pulse width of the pulse delay circuit, you can use pulse delay circuit composed of the NAND gate and single-shot. Its composition is shown in the figure.
