TLC2932 Phase Locked Loop Clock Generating Integrated Circuit

Published:2011/7/20 1:34:00 Author:Michel | Keyword: Phase Locked, Loop Clock, Generating Integrated Circuit | From:SeekIC

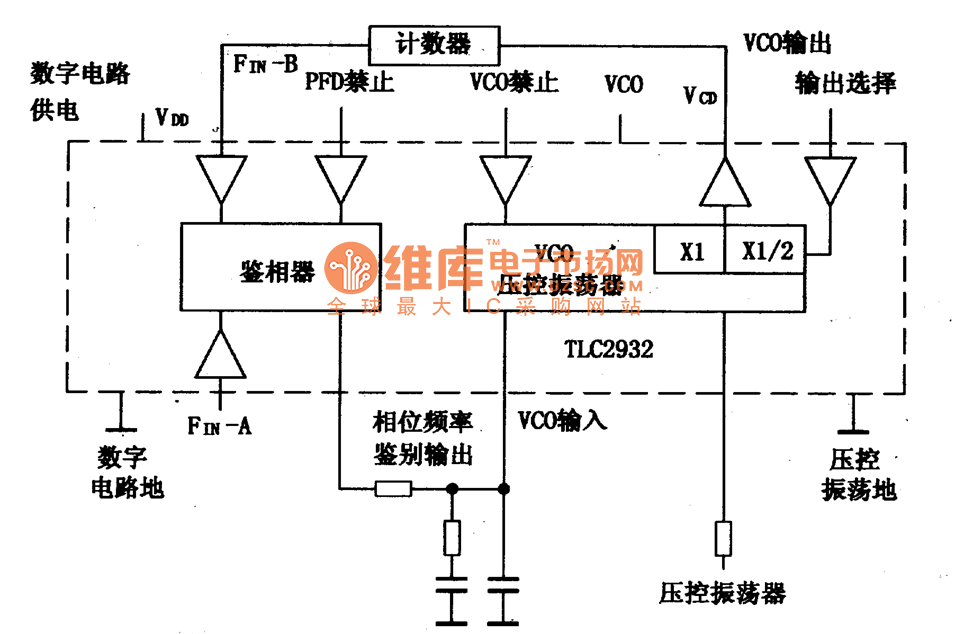

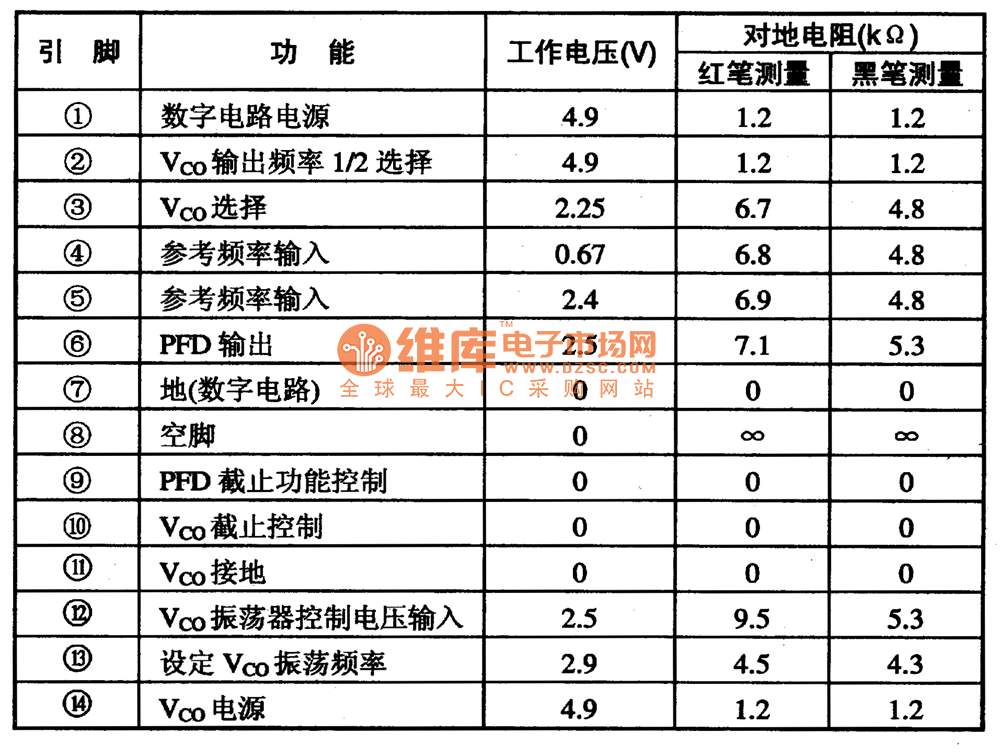

TLC2932 is FLL clock generating IC produced by TEXAS.TLC2932 is mostly used in the DLP projection TV, in order to provide the clock signal for processing circuits.TLC2932 integrated circuit contains the analog vco and phase detection circuit.Its inside circuit block diagram of intergrated block is shown as picture 1-1. Picture 1-1:Inside Circuit Block Diagram of TLC2932 Intergrated Block TL2932 adopts 14 feet DIP package and its pins functions and data are shown as table 1-2. Table 1-2:Pins Functions and Data ofTLC2932 IC
