PANNING_MIXER_POT

Published:2009/6/29 22:48:00 Author:May | From:SeekIC

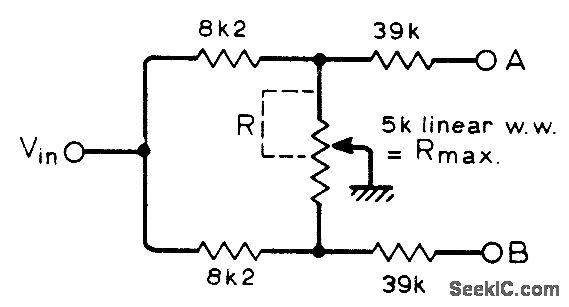

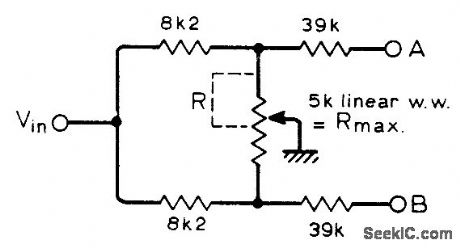

Circuit gives best possible approach to sine law so A2 = B2 is constant for all positions of wiper. Calculated error is less than n dB over full range of wiper. Use wirewound pot to minimize crosstalk.-J. Dawson, Single Gang Pan-Pot, Wireless World, Feb 1976,p78.
