PIC12F635 Based Door Alarm System

Published:2013/8/22 20:15:00 Author:lynne | Keyword: PIC12F635 Based Door Alarm System | From:SeekIC

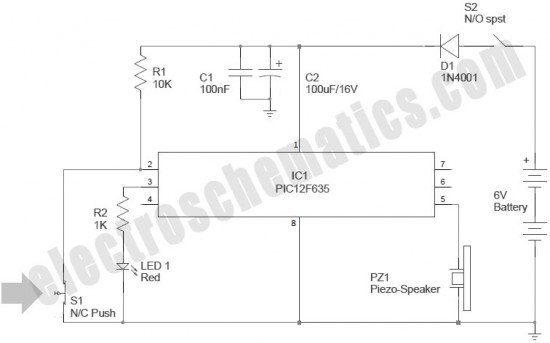

Now you can build your own simple door alarm security system using a tiny microcontroller chip PIC12F635! The circuit is nothing but an aural alert unit, which raises a warning tone when the concerned door is opened by someone. You can install this unit in your front/back door as a security alarm to deter burglars and intruders.The unit can be powered from four 1.5V AA/AAA cells wired in series (6VDC). After construction and testing, carefully mount switch S1 in the door (or doorcase) so that it is in “open” condition when the door is in closed state. Next, set up the alarm unit at a remote location, and make the interconnection between S1 and the alarm unit using low-voltage cables. The circuit can be energized by turning the power switch S1 to “On” position. The Red LED (LED1) blinks 3 times when the power is turned on to indicate that the system has been powered up. Then IC1 (PIC12F635) waits for 30 seconds before it starts monitoring the door sensor (S1) status. This delay is introduced deliberately to help the user to “arm” the alarm and move out through the door without triggering the alarm system. After this initial delay, when the IC1 detects S1 is closed (door opened) , it drives the iezo – speaker (PZ1) with a square wave signal, and the piezo – speaker remains on as long as the door is opened. If the door is again closed (and the switch S1 changes to open state) the piezo – speaker will not sleep immediately, but still be on for about 10 more seconds but with a slightly different frequency.
