POWER_INVERTER

Published:2009/7/7 9:39:00 Author:May | From:SeekIC

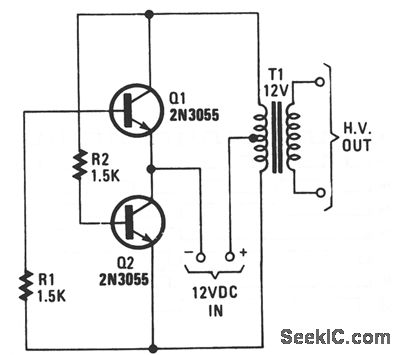

The transformer can be any 6.3 or 12.6 V type. Apply the 12-Vdc input so the positive goes to the transformer's center tap and the negative goes to the two transistor emitters. Any bridge-type rectifier and filter can be used at the output, if you need dc.
