Panasonic RB28CM razor circuit

Published:2011/9/4 22:25:00 Author:TaoXi | Keyword: Panasonic, razor circuit | From:SeekIC

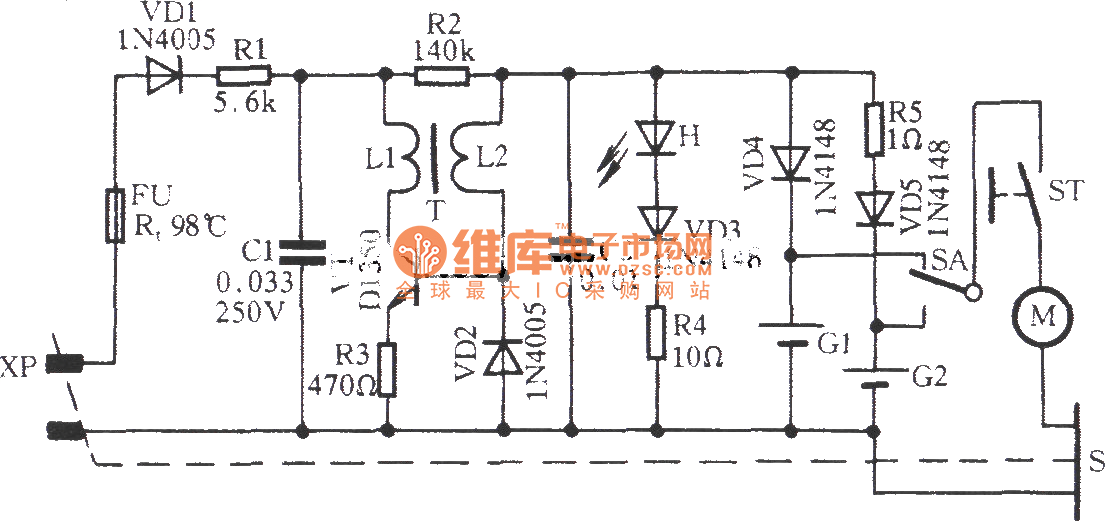

The Panasonic RB28CM razor circuit is as shown in the figure, it uses the low frequency oscillation circuit to produce the oscillation voltage, and this voltage is rectified and filtered by the circuit to charge the batteries.
