Passive Lossless cushion circuit topological structure

Published:2011/4/6 4:22:00 Author:may | Keyword: passive Lossless, cushion, topological structure | From:SeekIC

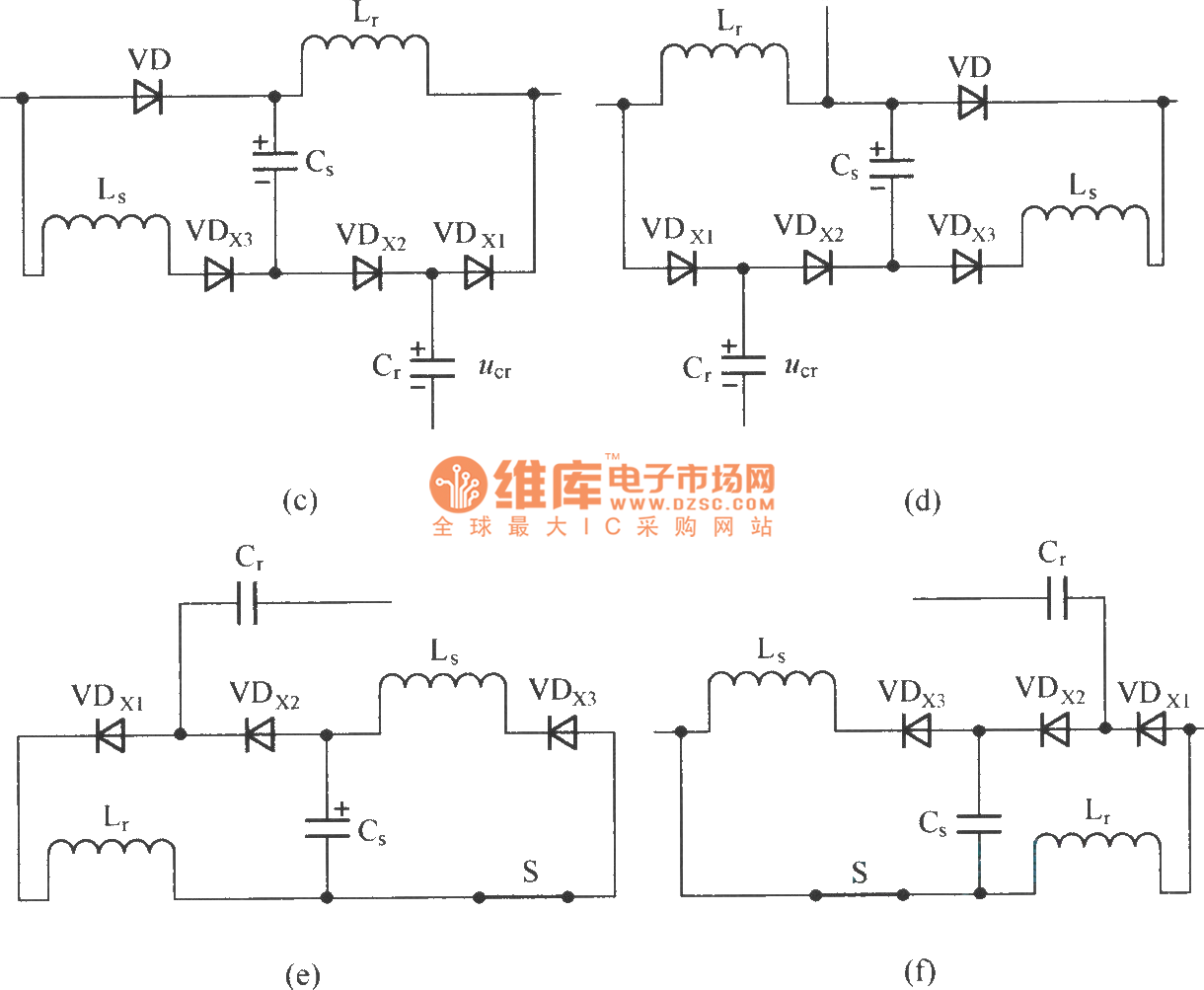

Passive Lossless cushion circuit topological structure include two classes:1, minimum voltage stress element (MVS), is shown in diagram (a), (b)2 non-minimum voltage stress element (Non-MVS) , is shown in diagram (c), (d), (e), (f)
