RAMP_FUNCTION

Published:2009/7/1 22:36:00 Author:May | From:SeekIC

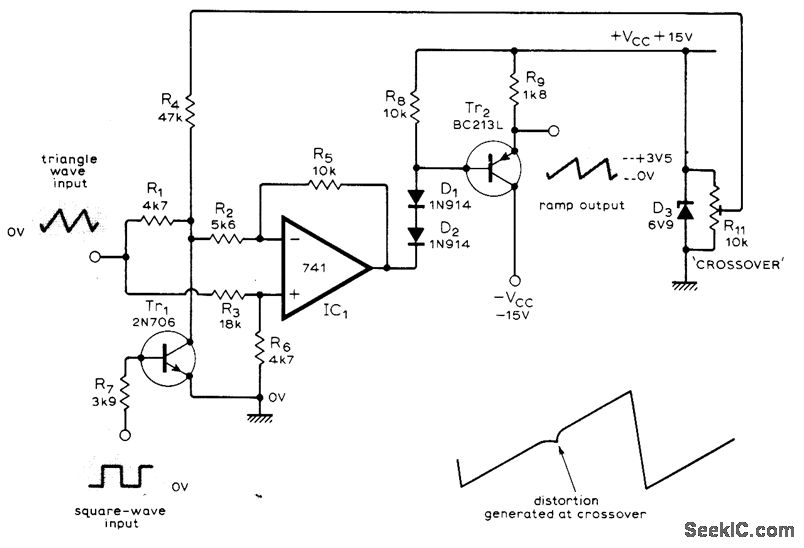

Circuit combines triangle and square-wave inputs from VCO in differen.tial amplifier having switched gain, to generate ramp function for use with variety of other waveforms in sound synthesizer designed for duplicating wide variety of sounds. Three-part article gives all circuits and operating details.-T. Orr and D. W, Thomas, Electronic Sound Syn thesizer, Wireless World, Part 1-Aug. 1973, p 366-372 (Part 2-Sept. 1973, p 429-434; Part 3-Oct.1976. p 485-490>
