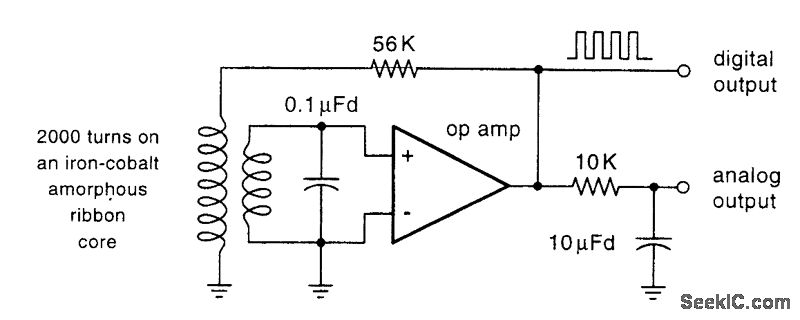

RESONANT_FLUXGATE_MAGNETOMETER

Published:2009/7/13 6:06:00 Author:May | From:SeekIC

The core will get switched in the out of saturation. The output duty cycle varies in proportion to single-axis field strength and direction. The high-level output square wave is easy to interface to a PIC or other microcontroller.
