RF_UPCONVERTER_FOR_TVRO_SUBCARRIER_RECEPTION

Published:2009/7/10 0:54:00 Author:May | From:SeekIC

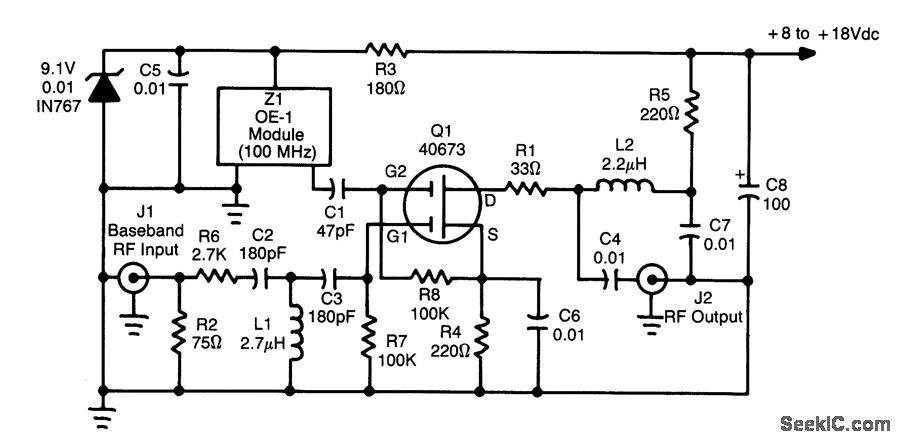

This converter uses a 40673 MOSFET to heterodyne the 5.5- to 8-MHz TVRO subcarriers to the FM broadcast band, where a stereo receiver can be used for high-fidelity stereo reception of TV sound subcarriers. 21 is a prepackaged 100-MHz oscillator module, which is available from International Crystal Corporation, Oklahoma City, Ok.
